The lineup includes “Expansion Jointer,” which is installed on the water pipe bridges to absorb expansion, contraction and vibration applied to pipes, “PE Bender” and “Adjust Bender,” which are useful for misalignment and angle adjustment.

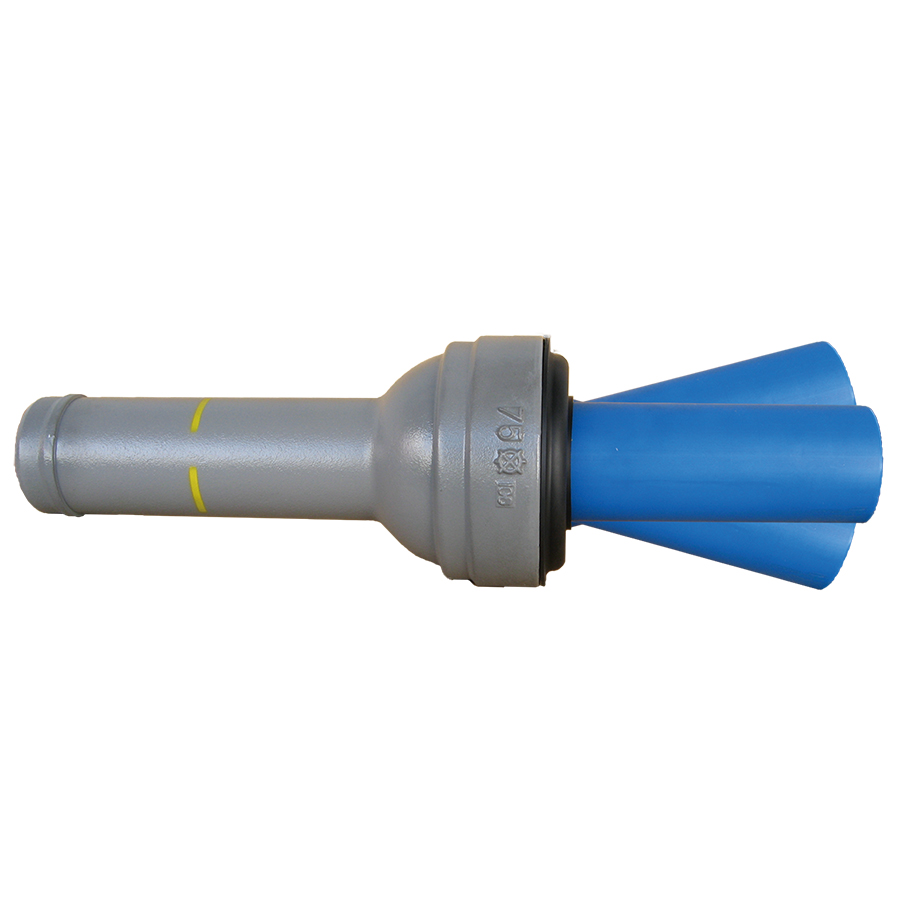

“PE Bender” is a PE ended ball-shaped swivel joint. Thanks to its simple boltless integrated structure, it has excellent watertightness and durability, making it ideal for earthquake resistant pipelines. It absorbs twisting force or localized displacement of the pipeline, and adjusts angles.
| Applicable size: | DN75-150mm |
|---|

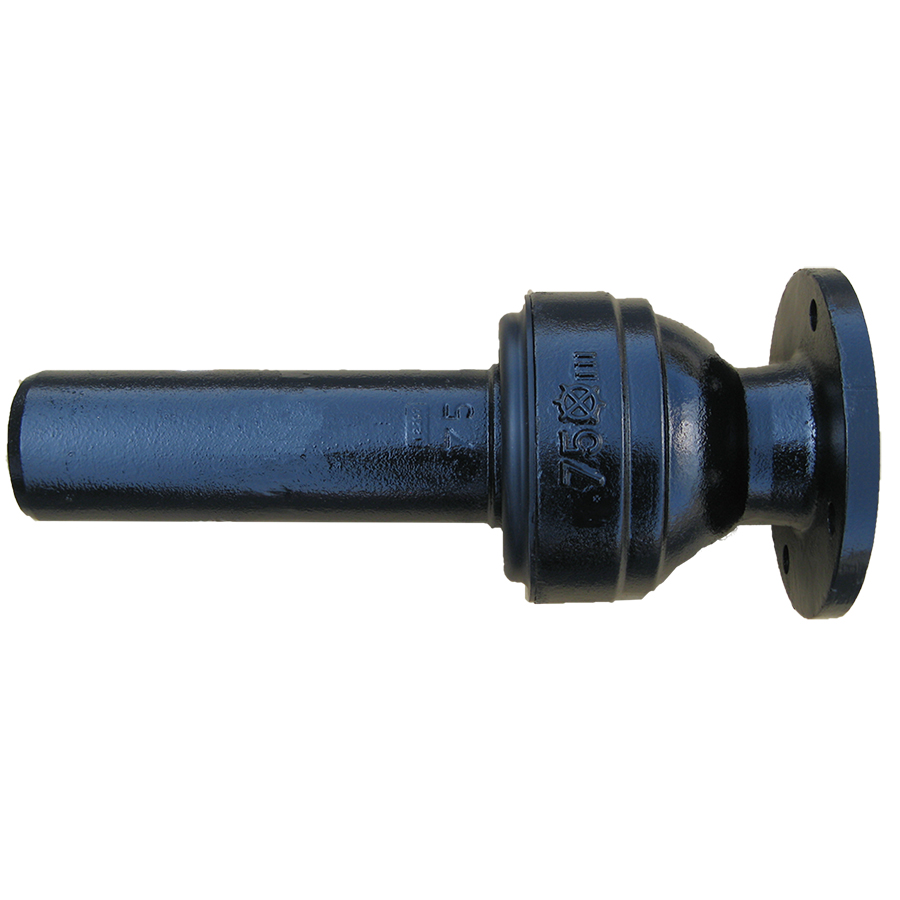

“Adjust Bender” is an angle adjustment fitting. The ball section deflects 15 degrees, making it ideal for centering ductile iron pipelines and bypassing obstacles.
| Applicable size: | Standard type DN75-300 mm |
|---|---|
| Long spigot type: DN75-200 mm |

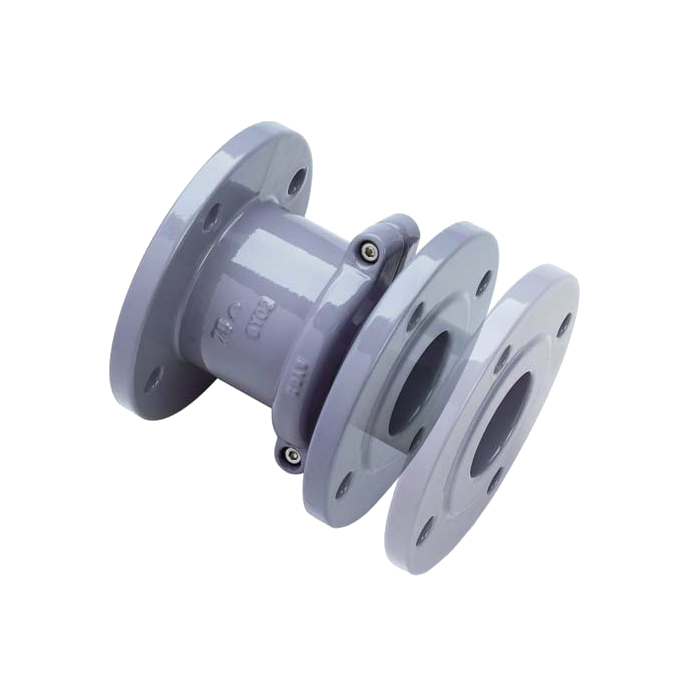

“Expansion Jointer” is made of ductile cast iron or steel fabrication. Suitable for absorbing expansion of water bridge pipes, using as a flange adapter in pump rooms or valve pits, and dimensional adjustment pipes for various pipelines.
| Applicable size: | DN50-600 mm |
|---|
Please feel free to inquire.
