Under Pressure Installation allows for branching of water supply lines or installing valves without stopping the water mains. We are contributing to the maintenance and management of lifelines with our original products; the “S-GATE” series which uses end mill drilling technology, the “S-Bunki Valve,” which integrates a standard resilient-seated gate valve and tapping tees, and the “KATANA VALVE,” which can be installed without any cutting chips enter into the pipe.
“KATANA VALVE” is the insertion valve for polyethylene pipes that can be installed at anywhere after laying of pipes. After grooving the polyethylene pipe with leaving a thin wall thickness, it uses an internal knife gate in the main body to push and cut, ensuring no cutting chips enter into the pipe, allowing for quick installation.
| Applicable pipe: | Polyethylene pipes DN 75-150mm |
|---|

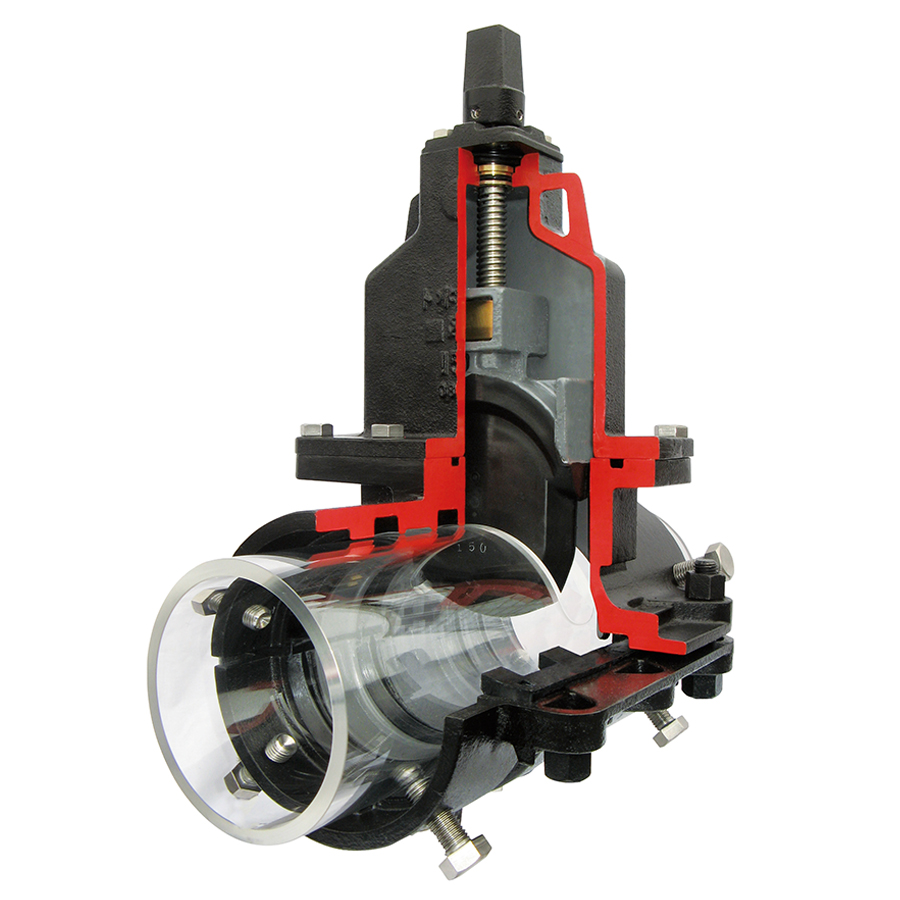

“S-GATE EX” is the latest compact model among the S-GATE series that can be installed with the dedicated EX type EM machine of less than 30cm in length. It minimizes the size of both the main body and installation equipment without compromising the S-Gate’s original sealing performance. By simplifying the installation process, it enables safe and reliable installation of under pressure valves into existing pipelines.
| Applicable pipe: | Ductile cast iron pipes and steel pipes DN75-300mm |
|---|

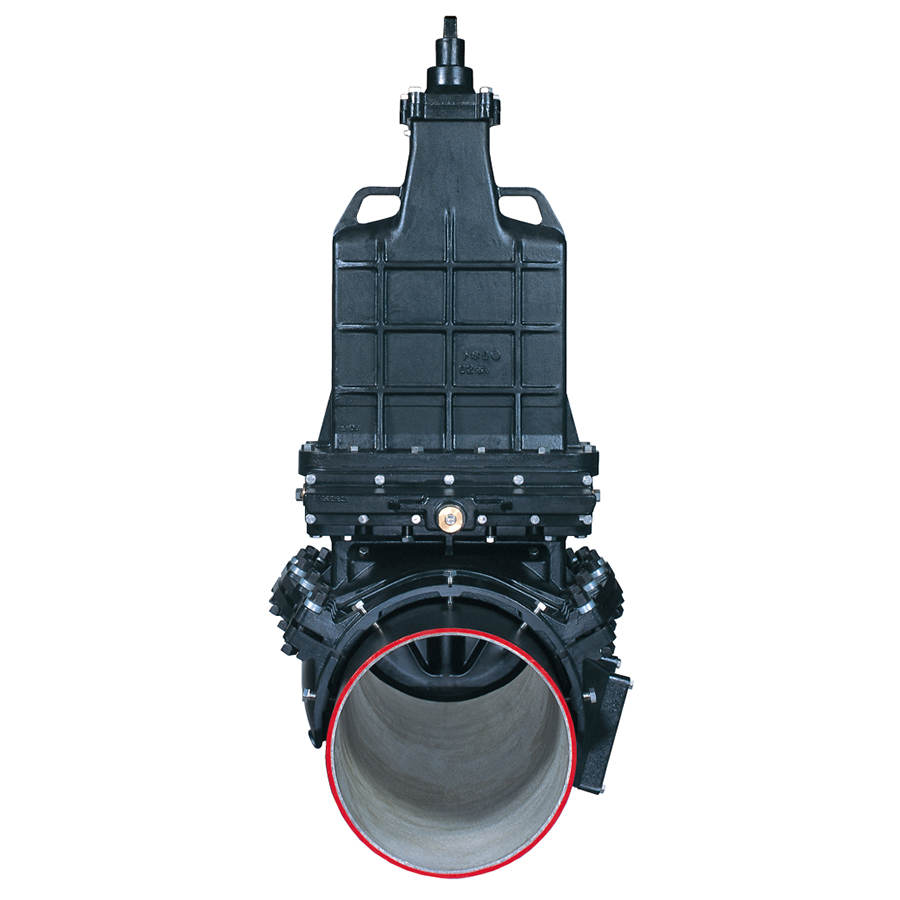

“S-GATE” is the world’s first under pressure installation system using end mill (EM) drilling to install valves without stopping the water.
We are steadily expanding our sales record not only in Japan but also overseas.
| Applicable pipe: | Ductile cast iron pipes and steel pipes DN 350-1200mm |
|---|

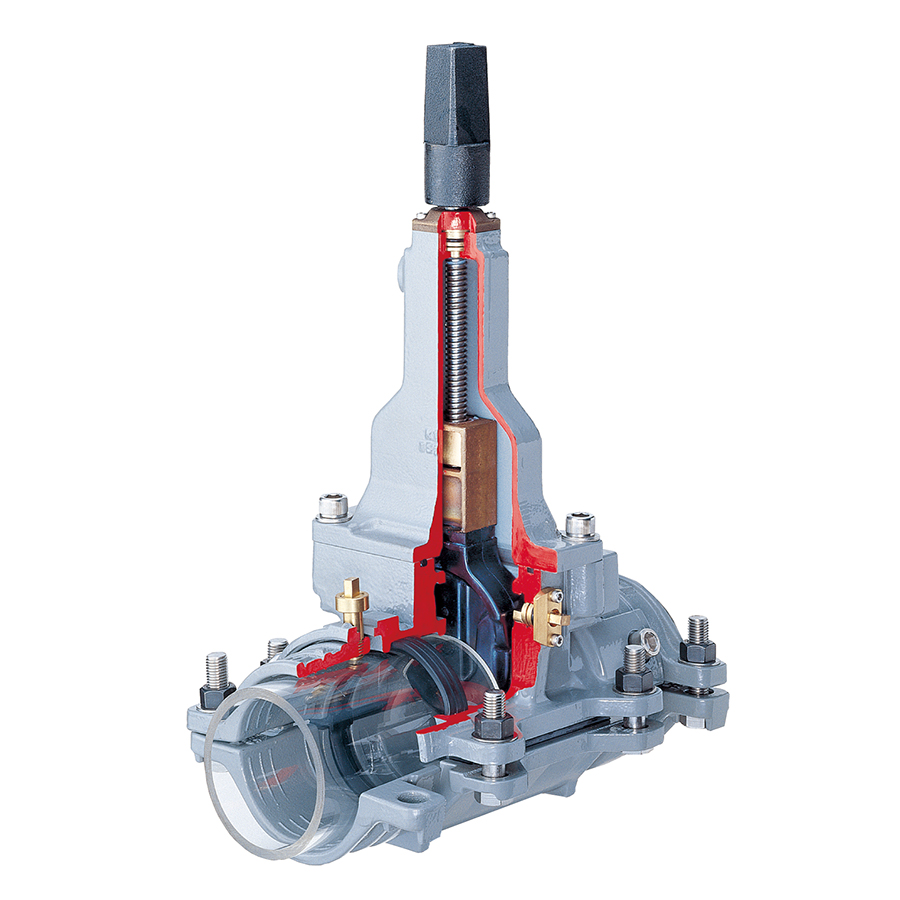

“S-GATE VP” is a lightweight and compact body designed especially for PVC pipes, incorporating a built-in temporary valve. The peripheral devices and installation processes are simplified, making them quick and efficient. End mill (EM) drilling using a dedicated VP type EM machine and a resilient-seated gate valve achieves superior sealing performance with low torque without excessive load on existing pipelines. Since the temporary valve is built into the body, the bonnet can be removed without using any special equipment.
| Applicable pipe: | PVC pipes DN 75-150mm |
|---|

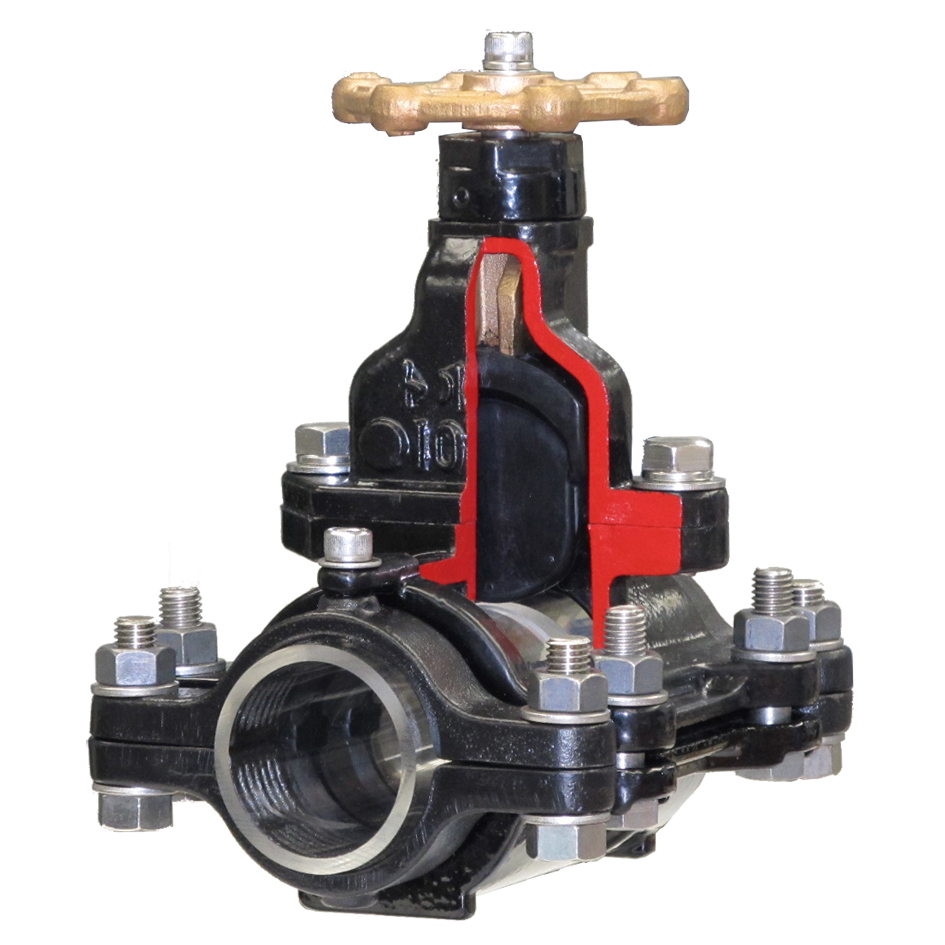

“S-GATE MN” features a simple and smart design that combines the experience and know-how cultivated with the S-GATE series. The compact body, emphasizing functionality, and the 100V power supply drilling machine minimize stress on the pipes, enabling safe and speedy installation.
| Applicable pipe: | PVC pipes and steel pipes DN50mm |
|---|

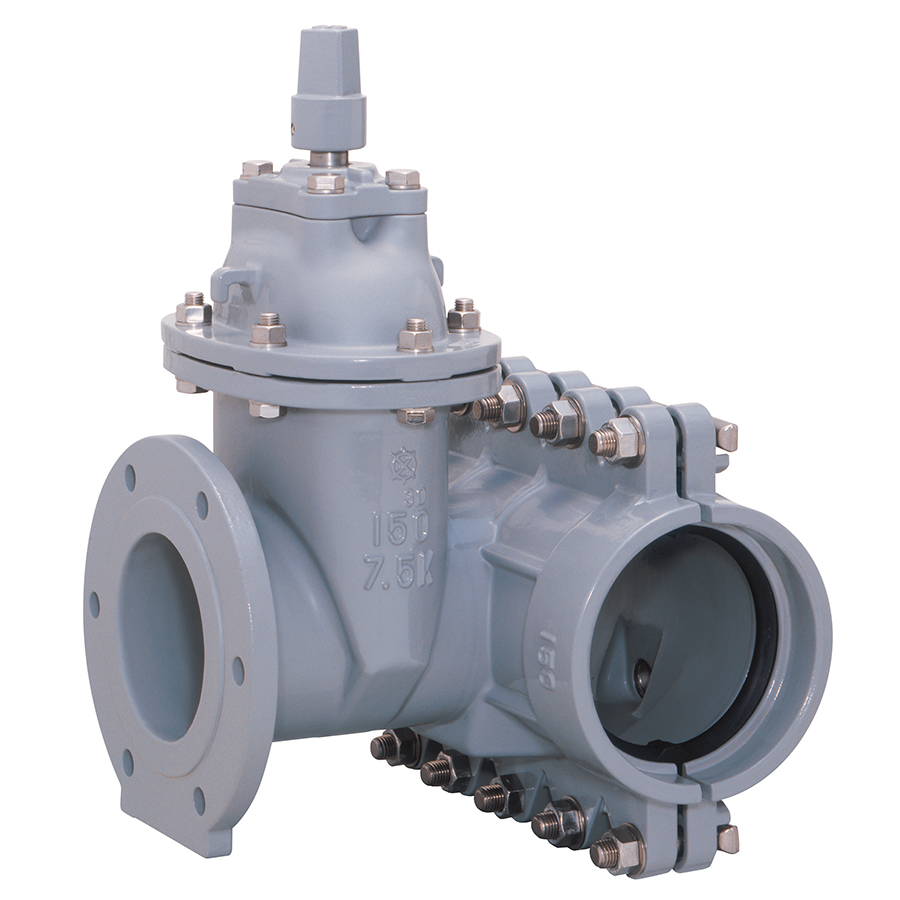

“S-Bunki Valve” integrates a standard resilient-seated gate valve and tapping tees. It features a reliable all-round gaskets and epoxy powder coating on both the interior and exterior surfaces, ensuring excellent corrosion resistance.
| Applicable pipe: | Ductile cast iron pipes and steel pipes DN 75-200mm |
|---|---|
| PVC pipes DN75-150mm |

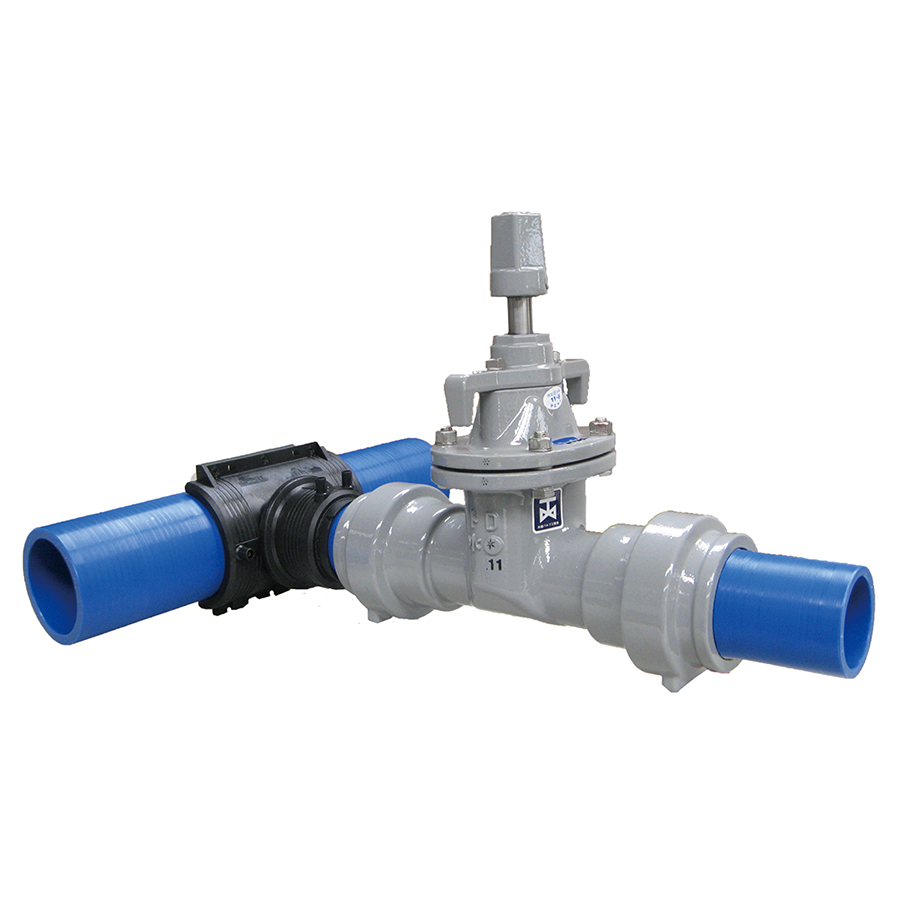

“EF Bunki Soft” is the pressure tapping system of that the tapping saddle and the PE ended standard resilient-seated gate valve can be welded to the existing polyethylene pipe by electric fusion.
The branch section is integrated with the pipeline, contributing to the seismic resistance of the pipeline.
| Applicable pipe: | Polyethylene pipes DN 100-200mm |
|---|

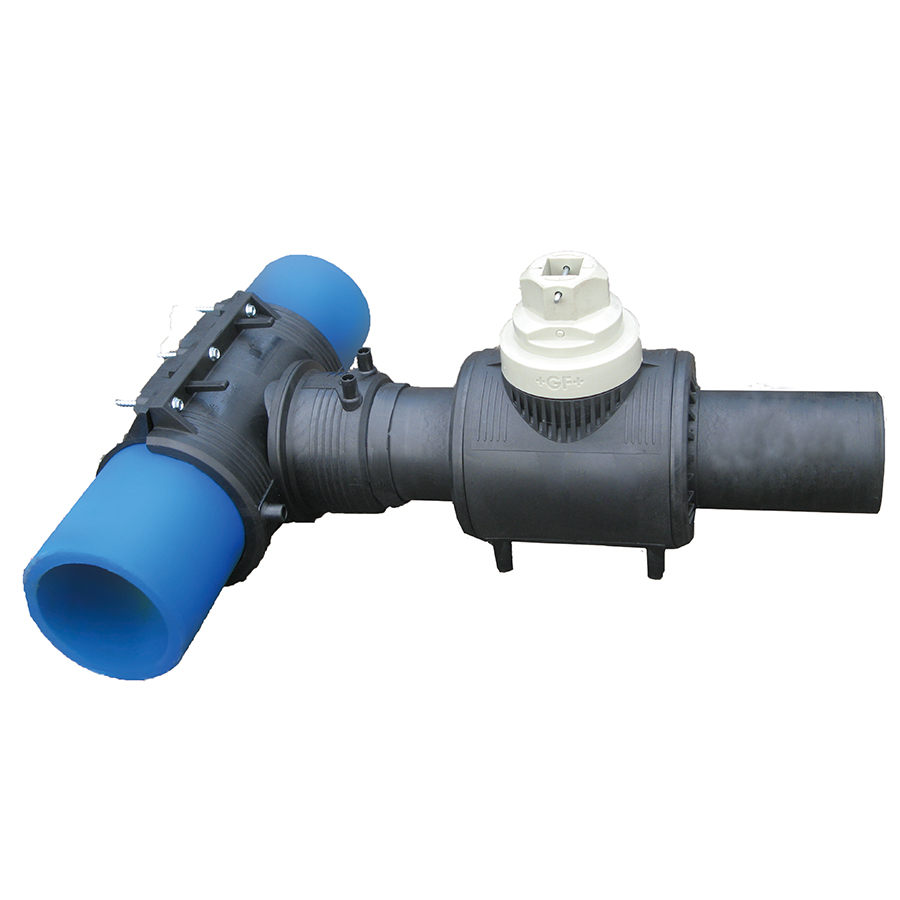

“EF Bunki” is the pressure tapping system of that the tapping saddle and temporary type of ball-valve can be welded to the existing polyethylene pipe by electric fusion.
The branch section is integrated with the pipeline, contributing to the seismic resistance of the pipeline.
| Applicable pipe: | Polyethylene pipes DN 100-200mm |
|---|
| Applicable pipe: | Type 4 for DN 75-150mm Type 5 for DN 75-200mm |
|---|
